Replace or Rotate Scraper Blade

1. NOTE: Rotate the blade 180 degrees when one edge becomes worn, rough, or bent. If both edges are worn, rough, or bent, replace the blade.

   Raise the snowblower.

2. Put blocks under both sides of snowblower.

3. Lock park brake.

4. Stop the engine and remove key.

5. Lower snowblower onto blocks.

6.

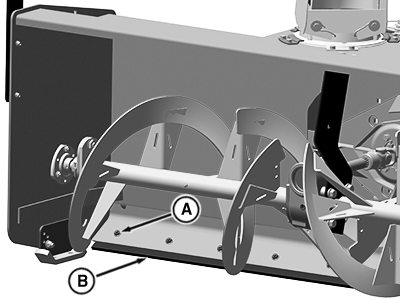

   LVP11627-UN-06APR21

   A - Nuts

   B - Blade

   Remove eight nuts (A) and bolts.

---




7. Remove the blade (B).

8. Rotate the blade 180 degrees so the top of the blade is now at the bottom.

9. Install the blade with bolts and nuts.
