Clean Gear Case Air Vent

1. Park tractor safely. (See Parking Safely in Safety Section of the tractor operator’s manual.)

2. IMPORTANT: Avoid damage! Vent hole must be clear of obstructions. Obstructed vent hole builds pressure in gear case and causes gear case to leak.

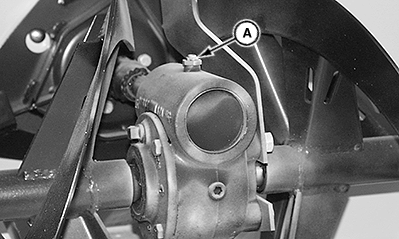

   LV23181-UN-23SEP14

   A - Vent Plug

   To make sure the vent plug (A) is not plugged with dirt or debris, check the vent plug (A).

---




3. If necessary, remove the vent plug (A) and clean vent hole with solvent.
