Adjust Spout - Manual

  1. Park tractor safely. (See Parking Safely in Safety Section of the tractor operator’s manual.)

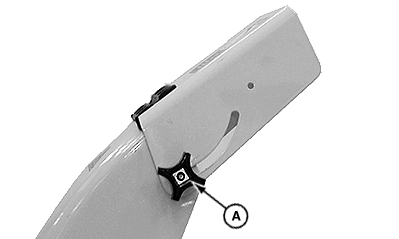

  2. LV23163
    LV23163-UN-23SEP14

    A - Knob

    Loosen the knob (A).



  3. Tilt the spout to the desired angle.

  4. Tighten the knob.

PR59899,00005A5-19-20210407
