Install A-Frame Mount

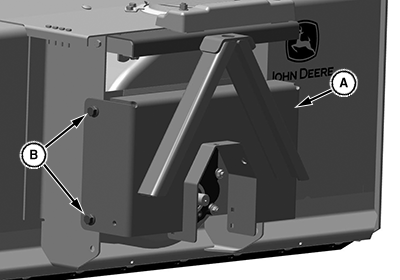

  1. LV24141
    LV24141-UN-07OCT15

    A - Adapter

    B - Cap Screw (M12 x 50 mm), Washer (M13 x 37 mm), and Lock Nut (M12) (4 used)

    Install A-frame receiver adapter (A) on the auger housing with cap screws, washers, and lock nuts (B).

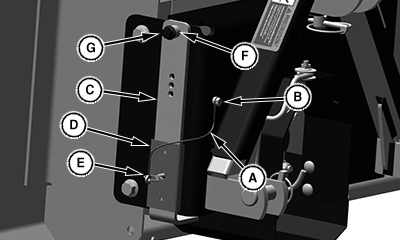

  2. LV24983
    LV24983-UN-13APR16

    A - Pin Retainer

    B - Cap Screw

    C - Parking Stand

    D - Bracket

    E - Locking Pin

    F - Spacer

    G - Cap Screw

    Install locking pin retainer (A) on adapter and secure with the cap screw (B) and nut.


  3. Slide parking stand (C) through bracket (D).

  4. Install locking pin (E) to secure in up position.

  5. Install spacer (F) and cap screw (G).

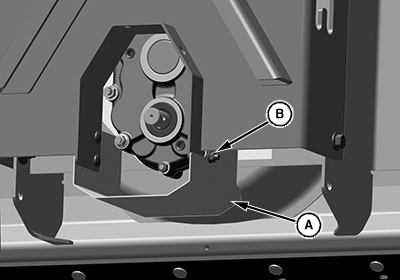

  6. LV24143
    LV24143-UN-07OCT15

    A - Shield

    B - Nut

    Install shield (A) on adapter and secure using cap screw and nut (B).

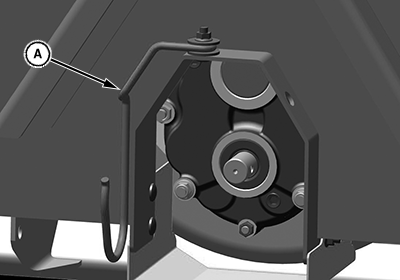

  7. LV24145
    LV24145-UN-07OCT15

    A - Wire Form

    Install wire form (A) and two washers on adapter. Secure using cap screw and nut.


NOTE: Quick coupler kit BXX11234 is required to connect snowblower kit BLV10906 with single point hydraulic connection kit BXX10283.
