Replace Fuel Filters

• Park machine safely. Allow engine to cool.
• Close fuel shutoff valve.

Replacing In-line Pre-Fuel Filter

1.

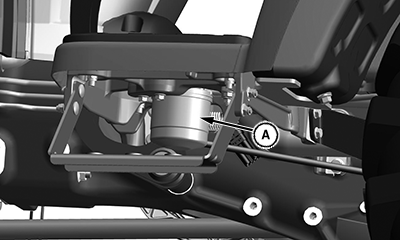

   LV25808-UN-13JUL16

   A - Fuel Filter

   Position drain pan under fuel filter (A).

---




2. Wipe dirt from around filter.

3. Turn filter counterclockwise to remove.

4. Apply fuel to surface of new filter gasket.

5. Install replacement filter by turning filter clockwise until gasket contacts filter base. Tighten an additional 1/2 turn.

6. Start and run engine at idle to check for leaks.

Replacing Final Fuel Filter

1.

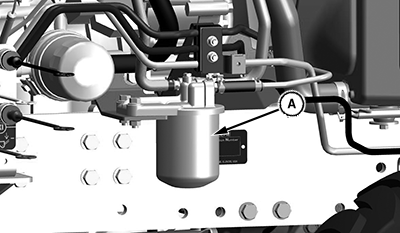

   LV25491-UN-02JUN16

   A - Fuel Filter

   Position drain pan under fuel filter (A).

---




2. Wipe dirt from around filter.

3. Turn filter counterclockwise to remove and discard.

4. Apply fuel to surface of new filter gasket.

5. Install new filter to filter head. Tighten to one complete turn after filter contacts head.

6. Open fuel shutoff valve.
