Check Radiator Hoses and Clamps

1. Park machine safely.

2. Raise hood.

3. Remove right and left-hand side panels.

4. Visually inspect hoses for cracks and wear. Squeeze hoses to check for deterioration. Hoses should not be hard and brittle, nor soft or swollen.

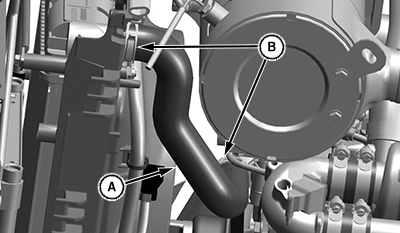

   LV25541-UN-03JUN16

   A - Upper Radiator Hose

   B - Hose Clamps

   Check upper radiator hose (A) for damage or cracking. Replace if necessary.

---




5. Check hose clamps (B) as needed.

6.

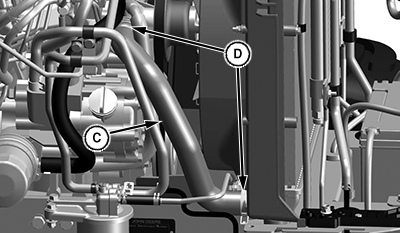

   LV25540-UN-03JUN16

   C - Lower Radiator Hose

   D - Hose Clamps

   Check lower radiator hose (C) for damage or cracking. Replace if necessary.

---




7. Check hose clamps (D) as needed.

8. Install right and left-hand side panels.

9. Lower hood.
