Use Optional Front Weights

Avoid Damage! Do not install weights on front bumper plate, damage to can occur to the front grille. Use optional bolt-on weight bracket for front weights.

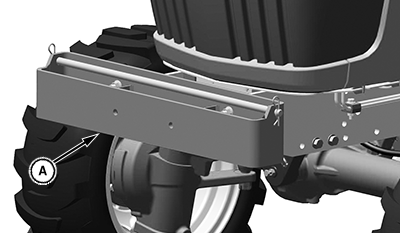

LV26018-UN-25AUG16

A - Front Weight Bracket

Quik-Tatch™ weights and attaching hardware are available at your John Deere dealer. Each weight is 19 kg (42 lb.) or 32 kg (70 lb.).

An optional front weight bracket extension kit (A) is available at your John Deere dealer. This optional front weight bracket extension kit holds up to ten Quik-Tatch weights.
