Road, Work, and Warning Lights

Avoid injury! Do not operate on roads with light switch in the field position. Front or Rear work lights may blind or confuse operators of oncoming or following vehicles.

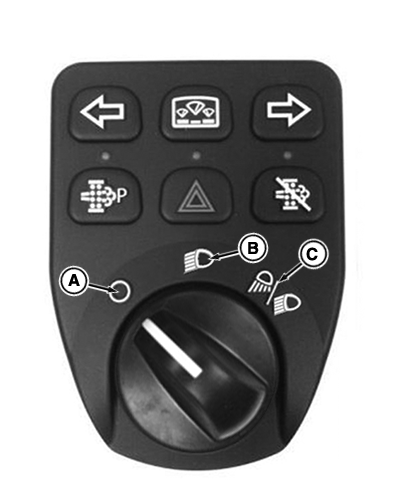

LV25017-UN-26APR16

Tractor Lights
Activated Switch on Module	Use	Tail Lights Red	Work Lights	Head Lights
A - Off	Field, Day Time	Off	Off	Off
B - Road Lights	On Road, No Traffic, Night Time	On	Off	On
C - Work Lights	Off Road, Night Time	On	On	On

To view the hour meter in the instrument panel with the key switch in the off position, push the light switch to the (B) or (C) position.
