Operate Throttle Lever

LV28766
LV28766-UN-19DEC17

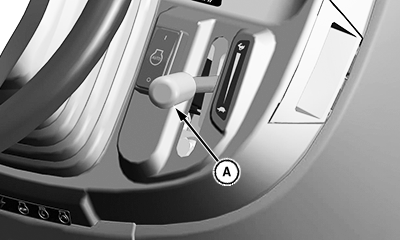

Throttle Lever

A - Throttle Lever

Use the throttle to change engine speeds. Use the throttle in conjunction with the tachometer to set engine speeds.

Increase Engine Speed - Push throttle lever (A) towards the front of machine.

Decrease Engine Speed - Pull throttle lever (A) towards the rear of machine.

GS25068,0003DE5-19-20180201
