Operate eThrottle

The use of eThrottle is not recommended during PTO applications. With eThrottle engaged, constant PTO rpm cannot be maintained, which results in reduced performance of implement.

LV24879
LV24879-UN-27JUL16

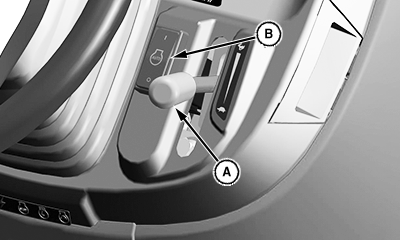

Throttle Lever

A - Throttle Lever

B - eThrottle Switch

eThrottle enables the operator to increase or decrease the speed of the engine and tractor by using the forward and reverse travel pedals.

  1. To set engine speed to low idle, pull throttle lever (A) towards rear of the machine.

  2. Push eThrottle switch (B) to the “I” position to engage.

  3. Push eThrottle switch to the “O” position to disengage.

GS25068,0003DE6-19-20180201
