Operate Fuel Shut-Off Valve

Avoid Injury! Close fuel shut-off valve when performing any type of engine service, during transport of the machine, and during storage.

Locate fuel shut-off valve on the left-hand side of the machine on the fuel sediment filter.

LV24957
LV24957-UN-15JUN16

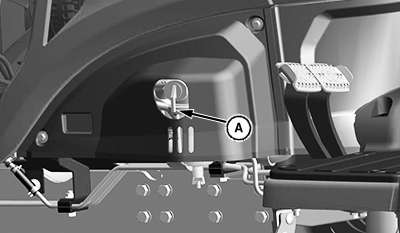

Fuel Shut-Off Valve

A - Fuel Shut-Off Valve Lever

Open or close fuel shut-off valve lever (A) as required:

  • Open Valve: Rotate valve lever pointer to the vertical position marked “ON”.
  • Close Valve: Rotate valve lever pointer to the horizontal position marked “OFF”.

GS25068,0003DE7-19-20180201
