Operate 3-Point Hitch

The 3-point hitch on your machine is classified as a category 1 hitch.

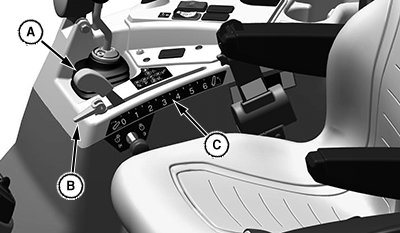

LV25424-UN-01JUN16

A - Rockshaft Control Lever

B - Rockshaft Depth Stop

C - Rockshaft Position Identifiers

Use rockshaft control lever (A) to raise and lower equipment attached to 3-point hitch.

The nine rockshaft position identifiers (C) do not signify specific operating depths. When rockshaft control lever is moved forward, draft arms lower closer to ground.

Lower Implement: Push rockshaft control lever forward.

Raise Implement: Pull rockshaft control lever rearward.

The adjustable rockshaft depth stop (B) can be adjusted to maintain a particular implement operating depth. To use the depth stop knob:

1. Operate implement for a few minutes to determine the desired operating depth.
2. Pull up on rockshaft depth stop lever (B).
3. Move lever against rockshaft control lever.
4. Push lever down to keep the depth stop in position. Implement will operate in same position each time rockshaft control lever is pushed against the depth stop.
