Position Center Link

•

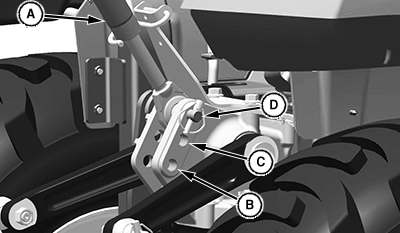

  LV25423-UN-01JUN16

  A - Center Link

  B - Light to Medium Draft Loads

  C - Medium to Heavy Draft Loads

  D - Very Heavy Draft Loads

  For light and medium draft loads: Install center link (A) in bottom hole (B) of mounting bracket. Example of light and medium draft load implements include a landscape rake. A category 1 implement tilts forward while raising in this position.
• For medium and heavy draft loads: Install center link in middle hole (C) of mounting bracket. Example of medium and heavy draft load implements include a tiller or box blade. A category 1 implement tilts forward slightly while raising in this position.
• For very heavy draft loads: Install center link in top hole (D) of mounting bracket. Example of very heavy draft load implements include a plow or ripper. A category 1 implement raises, but angle remains constant.

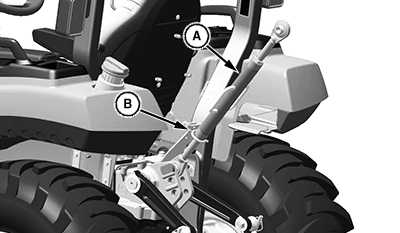

LV25422-UN-01JUN16

A - Center Link

B - Storage Hook

Place center link (A) in storage hook (B) when the hitch is not in use.
