Level Implement Front-to-Rear

1.

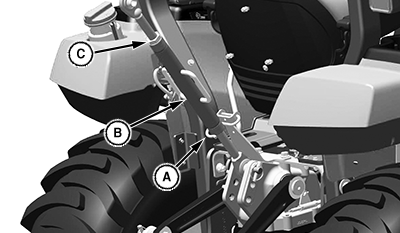

   LV25426-UN-01JUN16

   A - Storage Hook

   B - Center Link Body

   C - Locknut

   Park machine safely.

---




2. When the 3-point hitch is not being used, return center link to storage hook (A).

   Lower implement to ground to relieve pressure on center link.

3. Loosen locknut (C).

4. Avoid Damage! Do not turn center link body past the stops, or threads may be damaged.

   Rotate center link body (B) to lengthen or shorten the center link as needed.

5. Tighten locknut (C).
