Level Implement Side-to-Side

Use turnbuckle (A) on the right adjustable lift link (C) to level a 3-point hitch implement side-to-side.

1.

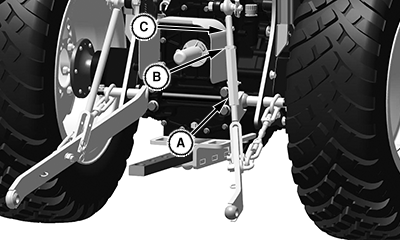

   LV26204-UN-13SEP16

   A - Turnbuckle

   B - Locknut

   C - Lift Link

   Park machine safely.

---




2. Lower any rear mount implement to the ground.

3. Rotate turnbuckle (A) to raise or lower draft link until 3-point hitch mounted implement is level from side-to-side.

4. Tighten locknut (B) to secure position.
