Adjust Implement Side-to-Side Sway

Make sure sway chains are tightened properly. When using certain implements, damage can occur to the sway link anchor point if not properly tightened.

Check implement operator’s manual procedure for adjusting sway links. When sway links have been properly adjusted, side sway of implement is controlled by position of links. A small amount of sway, 13—25 mm (1/2 - 1 in.), is needed for many implements.

Use left and right sway links (A) to adjust 3-point hitch implement side-to-side sway:

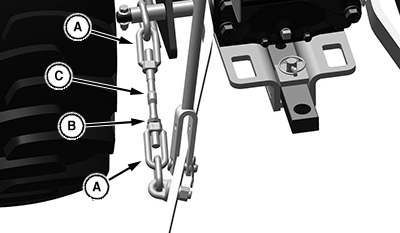

  1. LV25428
    LV25428-UN-01JUN16

    A - Sway Link

    B - Locknut

    C - Sway Link Adjusting Rod

    Park machine safely.


  2. Lower any rear mount implement to the ground.

  3. Loosen locknut (B).

  4. Rotate sway link adjusting rod (C) to adjust 3-point hitch implement side-to-side sway.

  5. Tighten locknut (B).

GS25068,0003DFE-19-20180201
