Operate Drawbar Hitch

Avoid Injury! Use only the drawbar that was provided with the machine. Do not install or use any other type drawbar.

To avoid rearward upset, all towed loads must be attached to the drawbar, not just to the center link or draft arms.

Avoid damage! Maximum static vertical load on drawbar not to exceed maximum recommendations. Drive slowly with heavy loads.

Maximum Drawbar Loads

Certain heavy equipment such as a loaded single-axle trailer can place excessive strain on the drawbar. Strain is greatly increased by speed and rough ground. Do not exceed the maximum static vertical loads on drawbar, see Specifications section.

Adjust Drawbar Length

Avoid damage! For drawn PTO-driven implements, the drawbar must be in the operating position.

The drawbar is equipped with three adjusting holes for changing drawbar length and one hole for storage.

1.

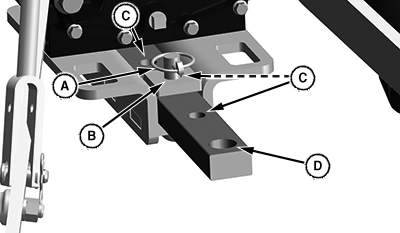

   LV25429-UN-01JUN16

   A - Lock Pin

   B - Drilled Pin

   C - Operating Position

   D - Storage Position

   Remove lock pin (A) and drilled pin (B).
2. Adjust drawbar to one of the three operating positions (C), or to storage position (D).
3. Install drilled pin (B) up from bottom of tractor. Secure with lock pin (A).
