Operate and Install Front 3-Point Hitch—If Equipped

Installing Lift Arms

1.

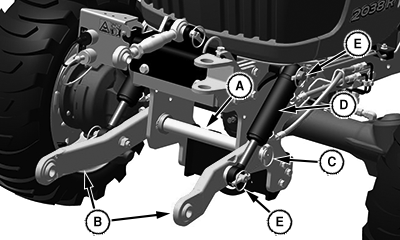

   LV25758-UN-27JUL16

   A - Front Shaft

   B - Lift Arms

   C - Quick Lock Pin

   D - Hitch cylinder

   E - Quick Lock Pin

   Slide front shaft (A) through bushings on bracket.

---




2. Install lift arms (B) and secure using quick lock pin (C).

3. Install front hitch cylinder (D) onto lift arms and secure with quick lock pin (E).

Operating Front Hitch

Raising and Lowering Hitch

1. Check to be sure hitch is not in transport lock position.

2. Review instructions on using hydraulic dual selective control valve (SCV) and dual selective control valve lock lever included in your tractor operator’s manual.

3. Move the tractor dual SCV lever:

   1. To raise the hitch, move the lever rearward.

   2. To lower the hitch, move the lever forward.

Adjusting Hitch Control Valve

1.

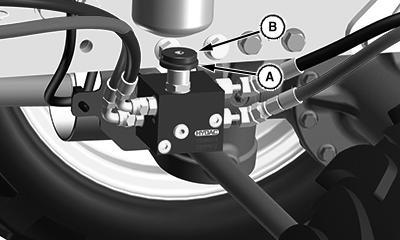

   LV25803-UN-11JUL16

   A - Knob

   B - Locking Disc

   To adjust the speed of raising and lowering the hitch, rotate knob (A).

   1. Turning the knob clockwise—hitch raises and lowers slower.

   2. Turning the knob counterclockwise—hitch raises and lowers faster.

---




2. Once correct speed is achieved, rotate the locking disc (B) clockwise to lock into place.
