Use Seat Belt

1. Avoid Injury! Always wear seat belt when operating machine with folding roll-over protective structure (ROPS) in upright position. Do not jump from machine if machine tips.

   If ROPS must be folded to operate in a low clearance area, do not use seat belt. Raise ROPS and use seat belt as soon as conditions permit.

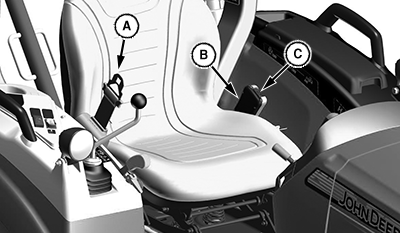

   LV25486-UN-01JUN16

   A - Seat Belt

   B - Latch

   C - Red Button

   To fasten the seat belt: Extend self-retracting seat belt (A) and insert into latch (B) on opposite side of seat. Seat belt is self-retracting and will automatically adjust to fit operator.

---




2. To release the seat belt: Press red button (C) on latch (B) to release seat belt end.
