Assemble and Install A-Frame—If Equipped

Assemble A-Frame

List of parts for reference:

1.
   LV25809-UN-14JUL16

   A - Cylinder Pin

   B - Lynch Pin

   C - Hinge Pin

   D - Lynch Pin

   E - Quick Lock Pin

   F - Retainer Rod

   G - Retainer Plate

   H - Wing Nut

   I - Cotter Pin

   Install cylinder pins (A) in frame with lynch pins (B).

---




2. Install hinge pin (C) in middle hole in frame with lynch pins (D).

3. Install quick-lock pin (E) in retainer rod (F). Install retainer rod on frame with retainer plate (G), wing nut (H), and cotter pin (I).

Install A-Frame

1.

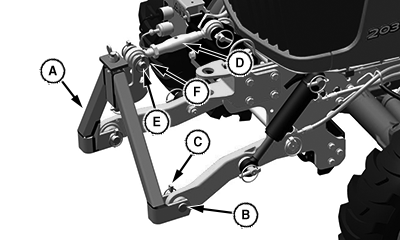

   LV25759-UN-07JUL16

   A - A-Frame

   B - Pin

   C - Quick Lock Pin

   D - Center Link

   E - Quick Lock Pin

   Install A-Frame (A) on lift arms as shown.

---




2. Secure with pin (B) and quick lock pin (C).

3. Install front hitch center link (D) on A-Frame with hinge pin (E) and quick lock pins (F).
