Install Implements on Front Hitch with A-Frame—If Equipped

1.

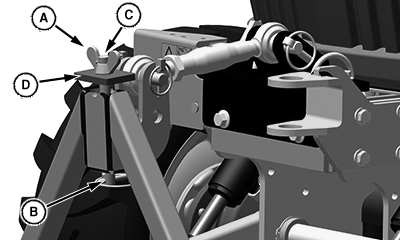

   LV25760-UN-07JUL16

   A - Wing Nut

   B - Quick Lock Pin

   C - Retainer Rod

   D - Retainer Plate

   Loosen wing nut (A) and remove quick-lock pin (B).

---




2. Remove retainer rod (C) with wing nut and retainer plate (D) from A-Frame.

3. Check to be sure that the implement hydraulic hoses are out of the way if applicable.

4.
   LV25810-UN-21JUL16

   A - Mount

   B - Wing Nut

   Drive tractor forward slowly and align A-Frame with mount (A) on implement.

---




5. Raise hitch to install A-Frame on mount.

6. Install retainer rod with wing nut and retainer plate through mount and A-Frame. Position wing nut (B) as needed to install quick-lock pin in retainer rod.

7. Tighten wing nut to secure implement to A-Frame.
