Remove and Install Battery

Remove:

1. Park machine safely.

2. Raise hood.

3. Remove side panels.

4. Disconnect headlight harness at fan shroud.

5.

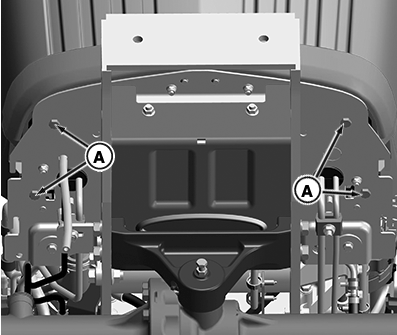

   LV29881-UN-16JAN18

   A - Cap Screw and Nut (4 used)

   Remove and retain grille mounting cap screws and nuts (A).

---




6. Slide grill up.

7. Disconnect black negative (-) cable (B) from

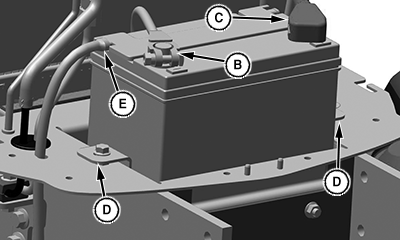

   LV29630-UN-16JAN18

   B - Negative (-) Cable

   C - Positive Terminal Cover

   D - Hold Down Bracket

   E - Vent Tube

   battery terminal first.

---




8. Slide red positive terminal cover (C) back and disconnect red positive (+) cable from battery terminal.

9. Remove hold down bracket (D) from both sides of battery tray.

10. Pull battery vent tube (E) from battery tray.

11. Remove battery.

Install:

1. Position battery in machine.

2. Route battery vent tube through hole in battery tray.

3. Install hold down brackets securing battery to battery tray.

4. Connect positive (+) cable to battery first, then attach negative (-) cable to battery.

5. Apply spray lubricant on battery terminals to help prevent corrosion.

6. Position red positive battery terminal cover on red positive (+) cable.

7. Slide grill back into position.

8. Install grille mounting cap screws and nuts.

9. Connect headlight harness at fan shroud.

10. Install side panels.

11. Lower hood.
