Replace Headlight Bulb

  1. Avoid damage! Do not touch glass headlight bulb with bare skin. Contact with bare skin could cause bulb to fail prematurely. Use gloves or a cloth when inspecting or replacing the bulb.

    Park machine safely.

  2. Raise hood.

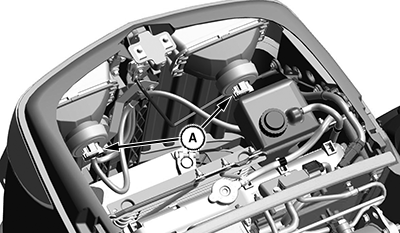

  3. LV25562
    LV25562-UN-13JUN16

    A - Headlight Bulb

    Remove connector from base of headlight bulb (A).


  4. Rotate base counterclockwise to remove bulb assembly from housing.

  5. Insert new bulb in housing and turn clockwise to secure.

  6. Insert connector into base of bulb.

  7. Lower hood.

  8. Check operation of headlights.

GS25068,0003E1D-19-20180201
