Replace Relays and Fuses

Avoid damage! The electrical system may be damaged if incorrect replacement fuses are used. Replace the bad fuse with a fuse of the same Amp rating.

Locate Fuses and Relays

All electrical circuits are protected by fuses. ampere rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuses

Fuse Rating

Color

10 Amp

Red

15 Amp

Blue

20 Amp

Yellow

30 Amp

Green

Fuse Location—Under Hood Cowl

  1. Park machine safely.

  2. Open hood.

  3. LV25563
    LV25563-UN-13JUN16

    A - Hood Cowl Latch

    B - Hood Cowl

    Pull hood cowl latch (A) out and up on both sides.


  4. Remove hood cowl (B).

  5. LV25564
    LV25564-UN-23AUG16

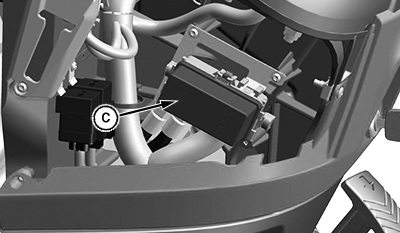

    C - Load Center Cover

    Remove load center cover (C).


  6. Identify fuse or relay in fuse block.

  7. Pull defective relay or fuse out.

  8. Replace with new relay or fuse.

  9. Install load center cover.

  10. Line up hood cowl and gently slide into place.

  11. Close hood.

Fuse Location—Right of Seat

  1. Park Machine Safely.

  2. LV25566
    LV25566-UN-15JUN16

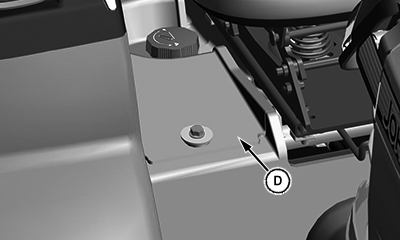

    D - Cover

    Remove bolt, washer and cover (D).


  3. LV25567
    LV25567-UN-15JUN16

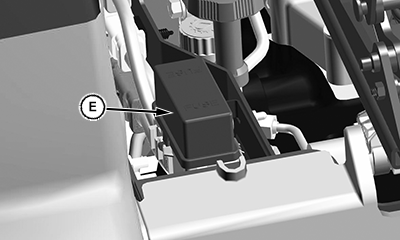

    E - Load Center Cover

    Remove load center cover (E).


  4. Identify fuse or relay in fuse block.

  5. Pull defective relay or fuse out.

  6. Replace with new relay or fuse.

  7. Install load center cover.

  8. Install cover (D). Secure with washer and bolt.

Fuse Location—Left of Radiator

  1. Park Machine Safely.

  2. Remove side panel.

  3. LV26021
    LV26021-UN-30AUG16

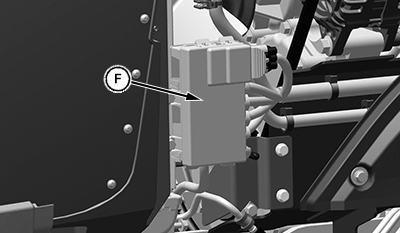

    F - Load Center Cover

    Remove load center cover (F).


  4. Identify fuse or relay in fuse block.

  5. Pull defective relay or fuse out.

  6. Replace with new relay or fuse.

  7. Install load center cover.

  8. Install side panel.

Fuse and Relay Size and Function

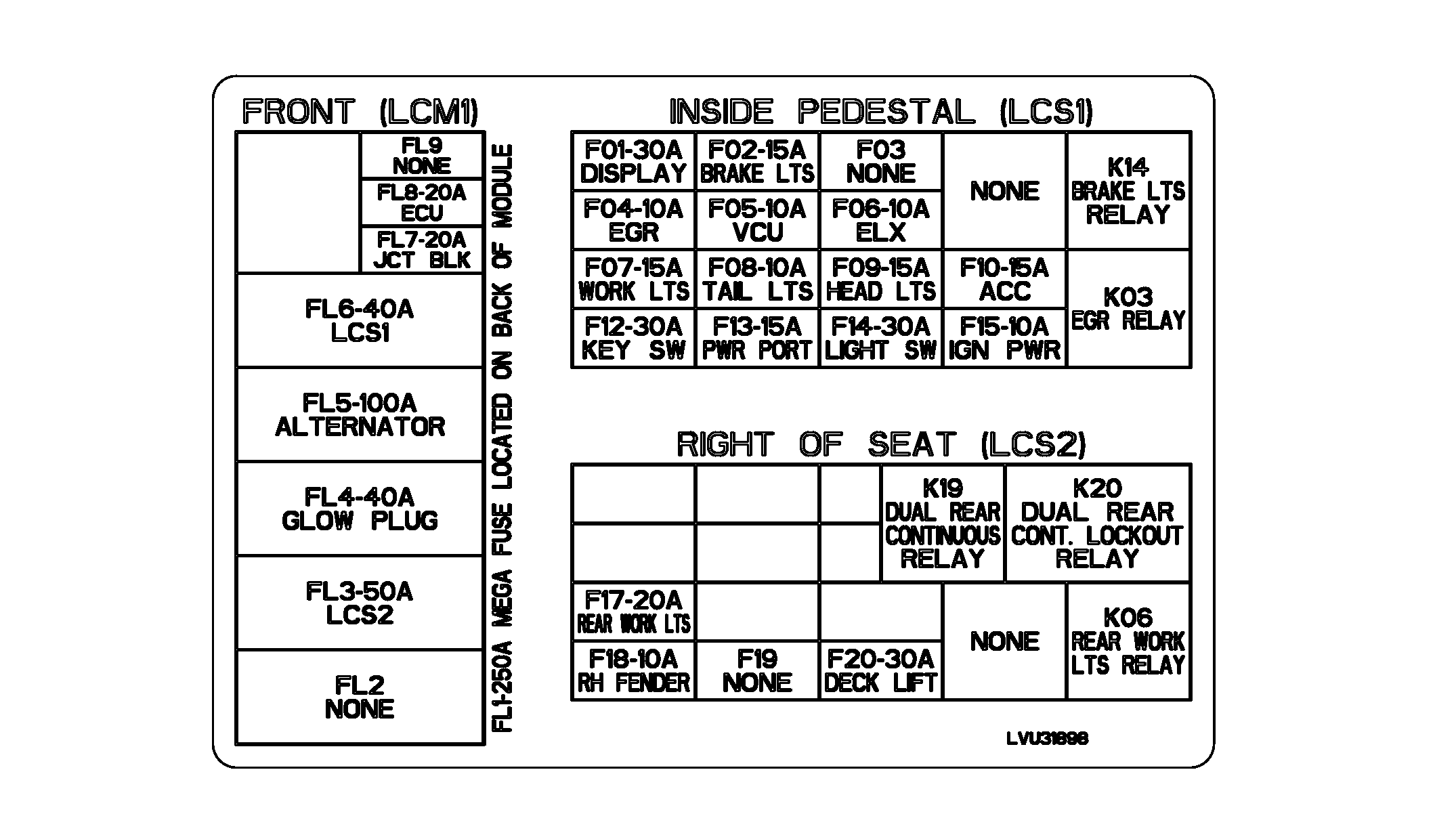

LV25750
LV25750-UN-05JUL16

Fuse Label

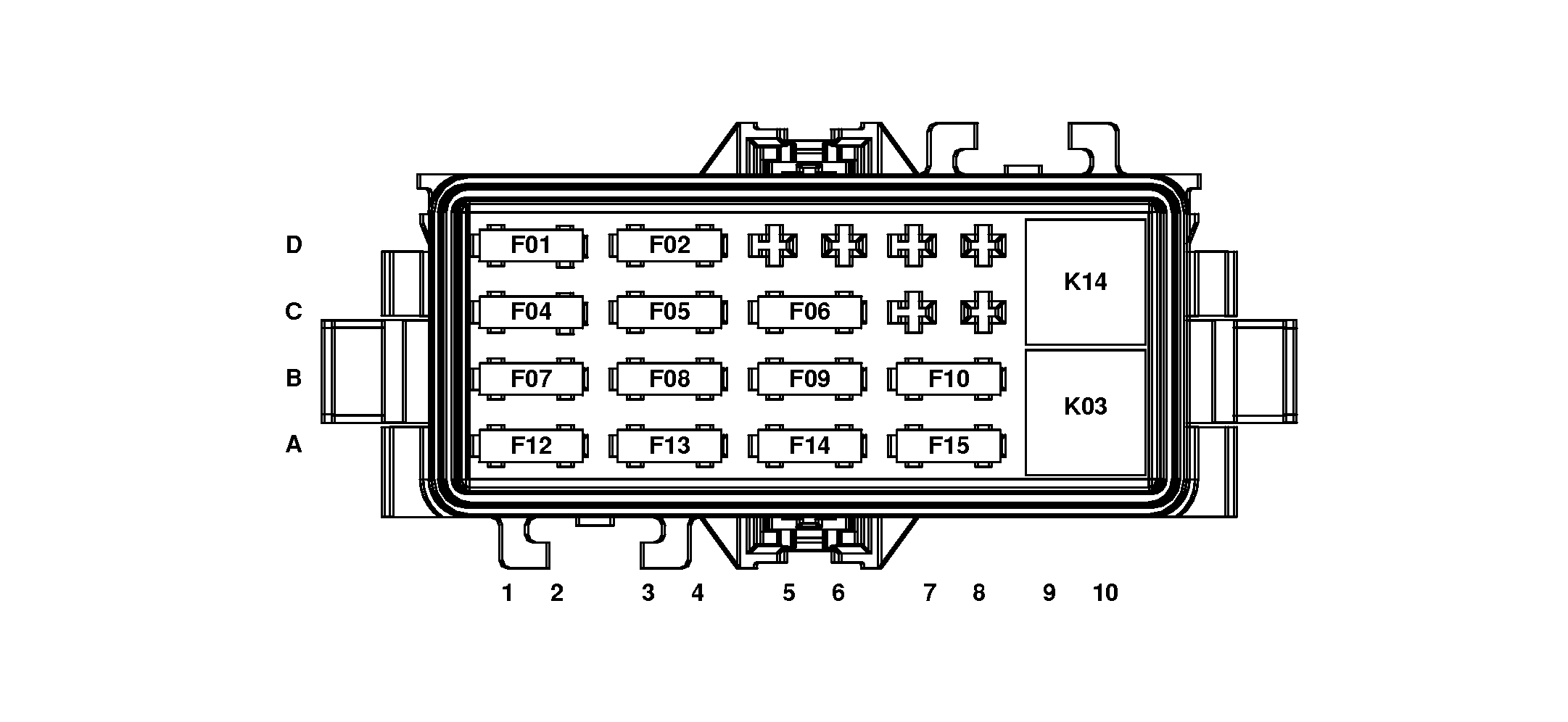

LV25569
LV25569-UN-13JUN16

Load Center 1

F01 - Display (30A)

F02 - Brake Lights (15A)

F03 - None

F04 - EGR Fuse (10A)

F05 - VCU Fuse (10A)

F06 - ELX Fuse (10A)

F07 - Work Lights Fuse (20A)

F08 - Tail Lights (10A)

F09 - Head Lights (15A)

F10 - Accessory Fuse (15A)

F12 - Key Switch Fuse (20A)

F13 - Power Port (15A)

F14 - Light Switch (30A)

F15 - Ignition Power (10A)

K14 - Brake Lights Relay

K03 - EGR Relay

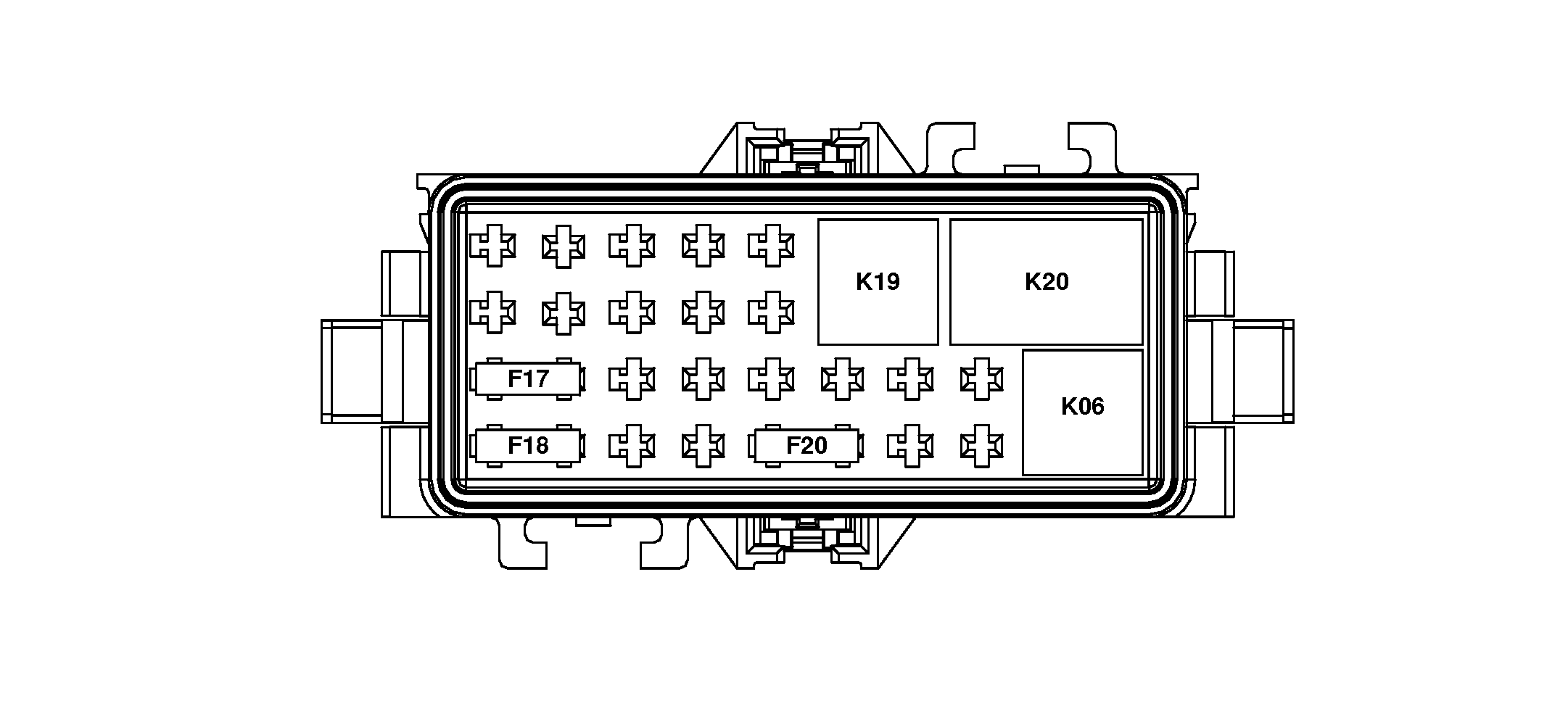

LV25570
LV25570-UN-13JUN16

Load Center 2

F17 - Rear Work Lights (20A)

F18 - Right Fender (10A)

F20 - Deck Lift (30A)

K06 - Rear Work Light Relay

K19 - Dual Rear Continuous Relay

K20 - Dual Rear Continuous Lockout Relay
