Check Front Axle Oil Level

1. Avoid damage! Allow oil one hour to settle before checking level to ensure accurate dipstick reading. Repeat oil level check after several hours of operation.

   Park the machine safely. Allow the machine to cool down for at least 1 hour.

2. Avoid damage! Dirt and debris in oil damages the transaxle. Clean area around opening before removing dipstick.


   LV25626-UN-13JUN16

   A - Dipstick

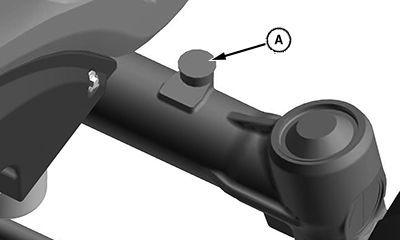

   Loosen and remove dipstick (A) located on the right side of the front axle.

---




3. Wipe the dipstick clean with a rag. Install and tighten the dipstick.

4.
   LVAL38331-UN-21AUG12

   B - High

   C - Low

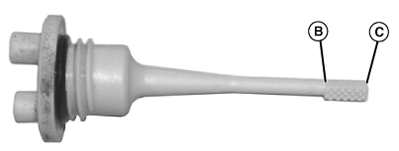

   Remove the dipstick. The correct oil level is between high (B) and low (C) on the dipstick.

---




5. If the oil level is low, add recommended oil through the dipstick opening until the level is correct

6. Install and tighten the dipstick.

7. Check the front axle oil level again after the first several hours of operation.
