Lubricate MFWD Driveshaft

1.
   LV25805-UN-11JUL16

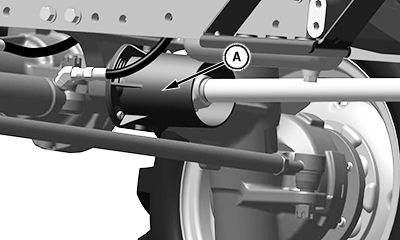

   Front MFWD Driveshaft Shield

   A - Front MFWD Driveshaft Shield

   Remove two screws, then rotate the front MFWD shield (A) counterclockwise to remove.

---




2.
   LV25806-UN-11JUL16

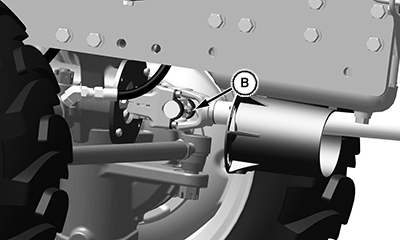

   Front MFWD Driveshaft

   B - Front MFWD Driveshaft Grease Fitting

   Lubricate the front MFWD driveshaft grease fitting (B) with John Deere multi-purpose grease.

---




3.
   LV25804-UN-21JUL16

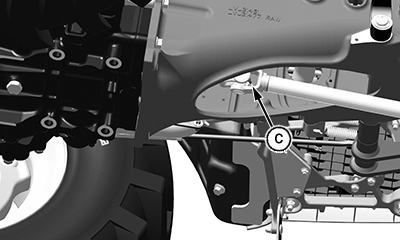

   Rear MFWD Driveshaft

   C - Rear MFWD Driveshaft Grease Fitting

   Lubricate the rear MFWD driveshaft grease fitting (C) with John Deere multi-purpose grease.

---
