Lubricate 3-Point Hitch

  1. LV25632
    LV25632-UN-15JUN16

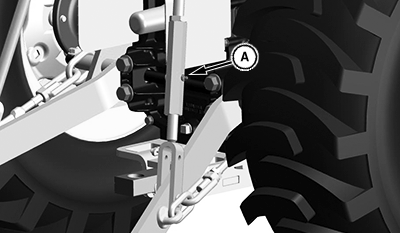

    A - Lift Link Grease Fitting

    Lubricate the lift link grease fitting (A) with the recommended grease or equivalent.


  2. LV25633
    LV25633-UN-15JUN16

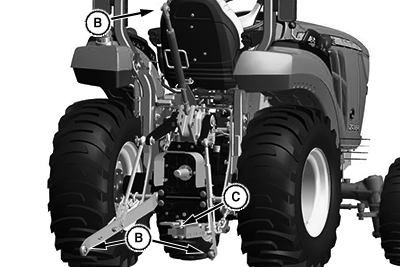

    B - Ball Joints

    C - Drawbar

    Lubricate the ball joints (B) and the drawbar (C) with SUPER LUBE® lubricant.1


1 SUPER LUBE is a registered trademark of Synco Chemical Corp.

GS25068,0003E26-19-20180201
