Lift Points for Jacking up the Tractor

Avoid crushing injury. Use approved lifting equipment only. Raise tractor on firm, level ground only. Before doing any work on the tractor, secure it using suitable jack stands.

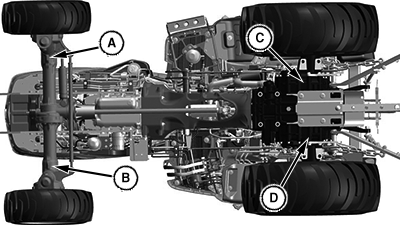

LV25635-UN-15JUN16

A - Front Left Lift Point

B - Front Right Lift Point

C - Rear Left Lift Point

D - Rear Right Lift Point
