Raise and Lower Hood

1.

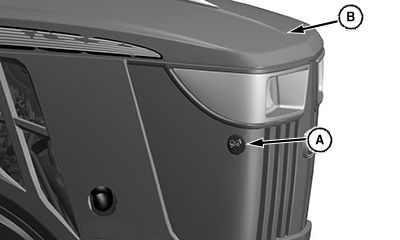

   LV25637-UN-05JUL16

   A - Hood lock

   B - Hood

   Park the machine safely.

---




2. Release the latch by inserting a screw driver into the hood lock (A).

3. Raise the hood (B).

4. Lock the latch by gently pushing down on both sides of the hood.
