Remove and Install Side Panels

1.

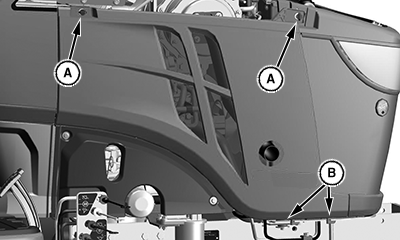

   LV25552-UN-05JUL16

   Left side shown. Right side is the same

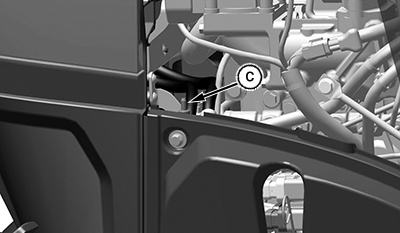

   LV26017-UN-25AUG16

   Alignment Pin

   A - Locking Pin

   B - Mounting Tabs

   C - Alignment Pin

   Park the machine safely.

---




2. Raise the hood.

3. Releases the side panel by pushing and turning the locking pins (A).

4. Tilt the side panel away from the machine and lift until the slots clear the front mounting tabs (B). Remove the side panel.

5. Align the side panel mounting slots with the front mounting tabs (B) and alignment pin (C).

6. Push the side panel into place.

7. Secure the side panel pushing and turning the lock pin (A).

8. Lower the hood.
