Adjust Height of Cut—If Equipped

Avoid Damage! To avoid machine damage when operating without a mower, fully raise the mower lift kit rear draft arms, and turn mower height control knob clockwise to the transport position to lock the arms in raised position.

LV24958-UN-15JUN16

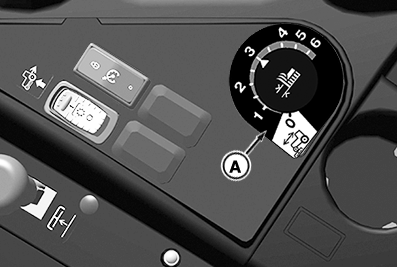

Mower Height of Cut Dial Shown

A - Mower Height of Cut Dial

Use mower height of cut dial (A) to adjust mower cutting height, and lock mower lift kit rear draft arms in raised or transport lock position. See your mower deck operator’s manual for instructions.
