Replace Tail/Turn Light Bulb

Taillight can be serviced by removing the rear assembly lens only.

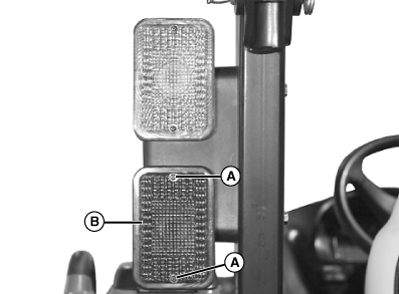

  1. LVAL38748
    LVAL38748-UN-05OCT12

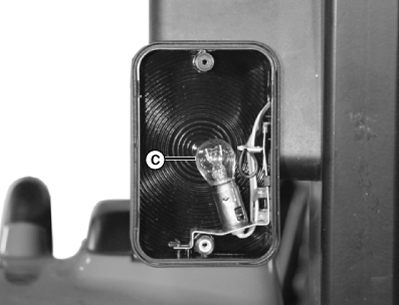

    LVAL38749
    LVAL38749-UN-05OCT12

    A - Screw

    B - Lens

    C - Bulb

    Park machine safely.


  2. Remove two screws (A) and red lens (B).

  3. Push down and rotate bulb (C) to remove. Do not twist bulb.

  4. Push down and rotate new bulb into socket.

  5. Check operation of taillights and turn signals.

  6. Install lens and screws.
