Replace Warning Light Bulb

1.

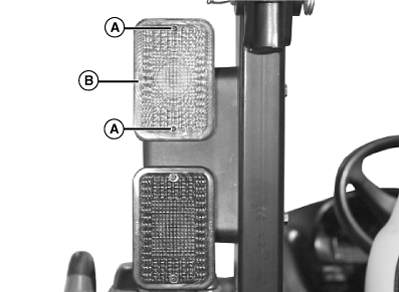

   LVAL38750-UN-05OCT12

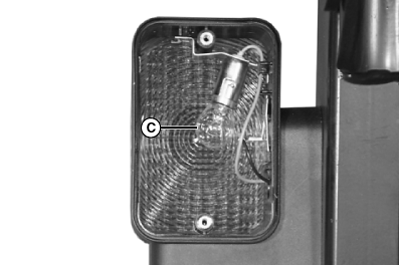

   LVAL38751-UN-05OCT12

   A - Screw

   B - Lens

   C - Bulb

   Park machine safely.

---




2. Remove two screws (A) and amber lens (B).

3. Push up and rotate bulb (C) to remove. Do not twist bulb.

4. Push up and rotate new bulb into socket.

5. Check operation of turn signal and warning lights.

6. Install lens and screws.
