Park Brake Operation

Avoid Injury! Engage park brake and move transmission range shift lever to a position other than N (neutral) before leaving machine unattended. Transmissions will not prevent machine motion without the park brake engaged.

LV24990
LV24990-UN-26JUL16

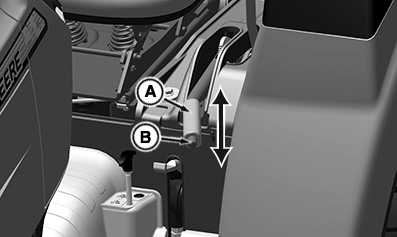

Park Brake Location Shown

A - Park Brake Lever

B - Park Brake Release Button

To engage park brake, lift up on park brake lever (A) ensuring that it ratchets up and stays in position.

To release park brake, lift up on park brake lever and depress park brake release button (B). To fully disengage park brake, lower park brake lever completely, while park brake release button (B) is depressed.

RD47322,0000B07-19-20160825
