Check Selective Control Valve

1.
   LV26016-UN-25AUG16

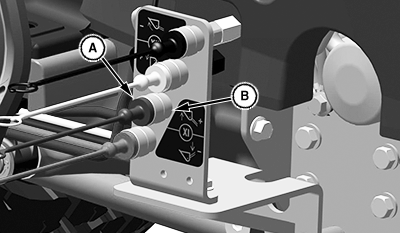

   SCV Couplers


   LV25634-UN-15JUN16

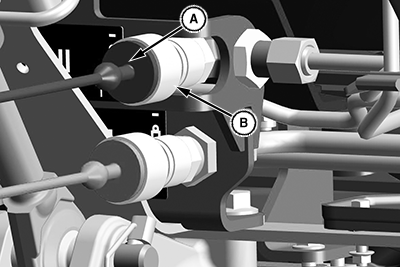

   Dual Rear SCV Couplers (If equipped)

   A - Dust Plugs

   B - Coupler

   Check the dust plugs (A) for damage, replace as needed.

---




2. Clean the dirt and debris from the selective control valve couplers (B) and check for oil leakage. Contact your John Deere dealer for service.
