Instrument Cluster

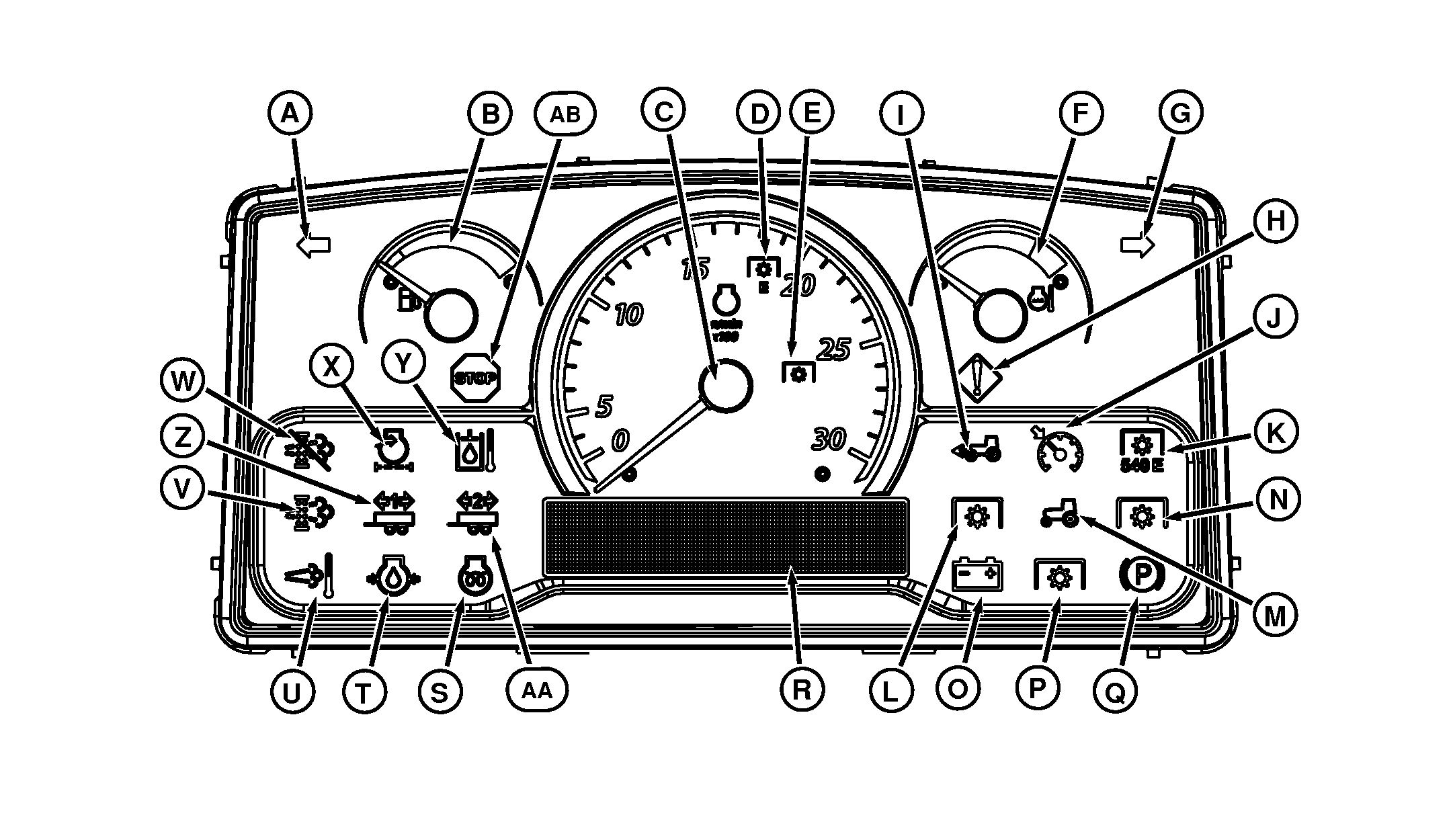

Instrument Control Panel

LV25927-UN-08AUG16

Instrument Control Panel

B - Fuel Gauge - Indicates the fuel level in the tank.

C - Tachometer - Displays engine speed in increments of 100.

D - Rated Economy PTO Speed - Not used.

E - Rated PTO Speed - Indicates the rated PTO speed setting for 540 PTO.

F - Engine Coolant Temperature Gauge - Indicates the temperature of the cooling system.

G - Right Turn Signal/Warning Flasher Indicator Icon - Right turn signal, hazard light, and the headlight/taillight ON indicator light.

H - Service Alert Indicator Icon - Light flashes indicating performance or operational problem is detected that needs to be resolved as soon as possible.

I - Front-Wheel Drive Indicator Icon - Illuminates when front-wheel drive is switched on.

J - Cruise Control Switch Icon - Illuminates when cruise control is switched on.

K - 540E PTO Indicator Icon - Not used.

L - Front PTO Indicator Icon- Not used.

M - PTO Indicator Icon - Not used.

N - Rear PTO Indicator Icon - Not used.

O - Alternator/Battery Charging Icon - Illuminates when the ignition key is in the ON position and the engine is not running. It also indicates an electrical load has exceeded alternator capacity and continued operation could deplete battery reserve.

P - Mid PTO Indicator Icon - Illuminates when the Mid PTO is engaged.

Q - Parking Brake Light- Illuminates when the ignition key is in the ON position and the parking brake is engaged.

R - Information Display Screen - Displays operational information.

S - Engine Glow Plug Indicator Icon - Illuminates when the engine controller (ECU) determines the need for engine pre-heating. Time depends on ambient temperature.

T - Engine Oil Pressure Icon - Illuminates when there is insufficient engine oil pressure to continue operation.

U - High Exhaust Temperature Icon - Illuminates when the temperature is high enough inside the exhaust filter to allow active filter cleaning.

V - Exhaust Filter Indicator Icon - Illuminates when soot levels in the filter are high and exhaust filter cleaning is needed.

W - Auto Cleaning Disabled Indicator Icon - Not used.

X - Air Filter Restriction Icon - Illuminates when air cleaner element is clogged, indicating air element needs to be cleaned or replaced.

Y - Hydraulic Oil Temperature Icon - Illuminates when the hydraulic oil temperature is overheated (If equipped).

Z - Trailer 1 Indicator Icon - Not used.

AA - Trailer 2 Indicator Icon - Not used.

AB - STOP Indicator Icon - Light flashes when a serious malfunction is detected.

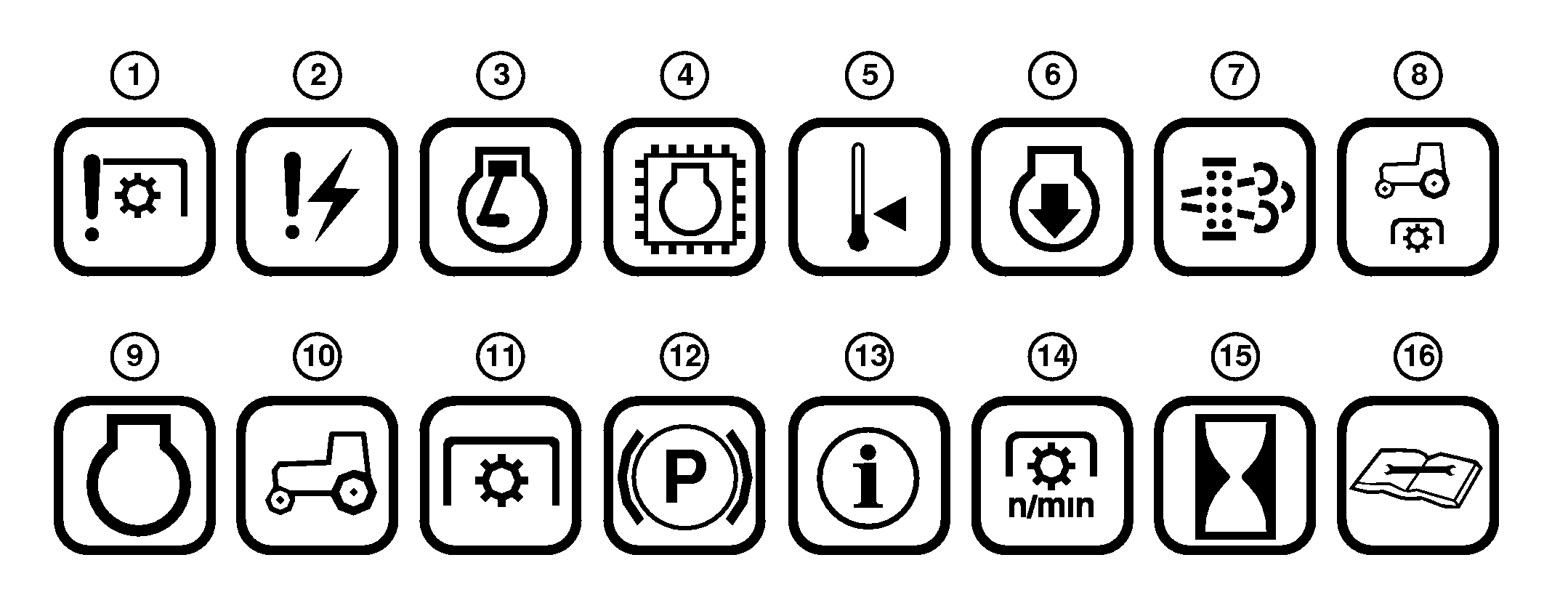

Information Display Icons

The following icons will show up in the information display screen.

LV26012-UN-25AUG16

Information Display Icons

1 - Shut PTO Off Icon - Illuminates when the condition requires the PTO shut off.

2 - Electrical Fault Icon - Illuminates when an electrical fault is present. May be accompanied by a display message.

3 - Engine Run Fault Icon - Illuminates when the operator attempts to engage the starter when the engine is already running. May be accompanied by a display message.

4 - ECU Regeneration Inhibited Icon - Illuminates if the ECU is preventing regeneration. See your John Deere dealer.

5 - Engine Cold Icon - Illuminates when regeneration requires engine to be above 60° C.

6 - Reduce Engine Speed Icon - Illuminates when regeneration requires initial low idle.

7 - Diesel Particulate Filter—Exhaust Filter Icon - When shown on the LCD, this symbol is associated with the display of soot level and filter hours.

8 - Mid PTO Icon - This symbol is associated with the display of Mid PTO speed.

9 - Engine Icon - This symbol is associated with the display of engine hours.

10 - Tractor Side View Icon - This symbol is associated with the display of vehicle hours.

11 - PTO Icon - This symbol is associated with the display of PTO hours.

12 - Apply Park Brake Icon - Illuminates when the condition requires park brake engaged. May be accompanied by a display message.

13 - Important Icon - This symbol is associated with feedback to operator.

14 - PTO Speed Icon - This symbol is associated with the display of PTO speed (mid or rear).

15 - Hour Meter Icon - Illuminates when the engine or PTO hour information is shown on the information display panel.

16 - Service Alert Icon - Illuminates when there is an active error shown on the information display panel. May be accompanied by a display message.
