Operate Key Switch

LV24878-UN-02MAY16

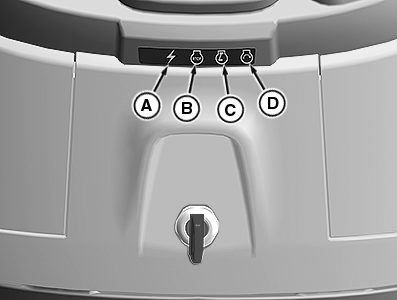

Key Switch

A - Accessories Position

B - Off Position

C - Run Position

D - Start Position

Position (A)—Provides power to the electrical accessories only, not the engine.

Position (B)—Switched power is off and engine is off.

Position (C)—The engine oil pressure light and battery charge light illuminates on initial activation. Glow plugs will be activated if there is a need for engine pre-heating.

Position (D)—Start position. Release the key after the engine has started to return to the run position (C). Engine oil pressure and battery charge lights turn off.
