Brake Operation

CAUTION: Avoid possible injury from losing control of tractor, lock brake pedals together with pedal lock tab when operating on roads or at high speeds.

• Lock pedals together when not using the turning brakes or for road travel or transport.
• Slow down before making a turn.

LV24988-UN-20APR16

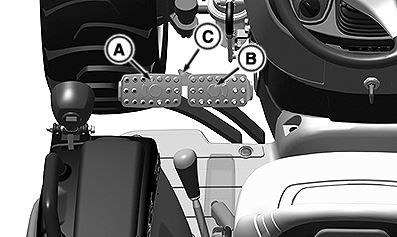

Brake Pedals

LV24987-UN-20APR16

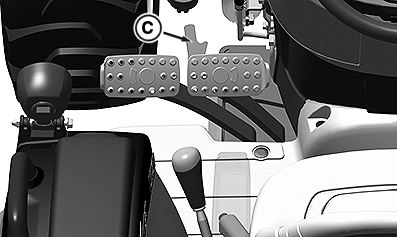

Brake Pedal Lock Tab

A - Left Brake Pedal

B - Right Brake Pedal

C - Brake Pedal Lock Tab

Using Brake Pedals to Assist in Turning

IMPORTANT: Avoid damage! Do not apply turn brakes while an implement is engaged with the ground. Damage to the 3-point hitch and implement may occur.

NOTE: Turning brake pedals can be used to make tighter turns and may reduce unnecessary backing.

Rotate brake lock tab (C) clockwise to unlock left and right brake pedals. Brake pedals will now function independently.

• To make a tighter left turn, depress left turning brake pedal (A) while turning to the left.
• To make a tighter right turn, depress right turning brake pedal (C) while turning to the right.
