Changing Transmission Oil and Hydraulic Suction Oil Filter

CAUTION: Avoid injury! Touching hot surfaces can burn skin. The engine, components, and fluids are hot when engine has been running. Allow the engine to cool before servicing or working near the engine and components.

IMPORTANT: Avoid damage! If there is evidence of severe oil contamination, it may be necessary to change the oil several times.

Contamination of hydraulic fluid could cause transmission damage or failure.

Severe or unusual conditions require a more frequent service interval.

NOTE: Transmission oil can be changed every 1200 hours or 3 years if the following requirements are met:

• Use John Deere Hy-Gard™ or Lo-Vis Hy-Gard oil.
• Suction and transmission filter are both changed every 400 hours.
• Perform oil-scan of transmission oil every 400 hours or once per year.

1. Drive tractor a few minutes to warm and mix transmission oil.

2. Park machine safely.

3.
   LV25623-UN-25AUG16

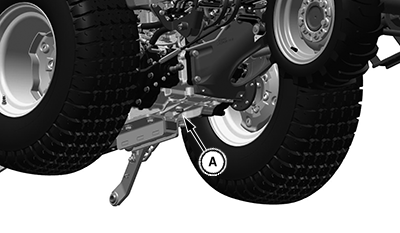

   A - Transmission Drain Plug

   Position drain pan under transmission drain plug (A) at rear cover. Remove plug and allow oil to drain.

---




4. Install transmission drain plug.

5.
   LV25624-UN-15JUN16

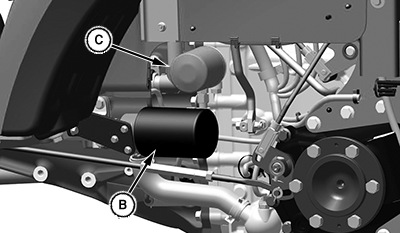

   Shown with left rear tire removed for clarity.

   B - Hydraulic Suction Filter

   C - HST Filter

   Position drain pan under suction filter (B) and HST filter (C). Remove filters and allow oil to drain.

---




6. Put a light coat of clean transmission oil on gasket of new filters.

7. Install replacement filters by turning clockwise until gasket contacts filter base. Tighten additional one half turn.

8.
   LV25622-UN-13JUN16

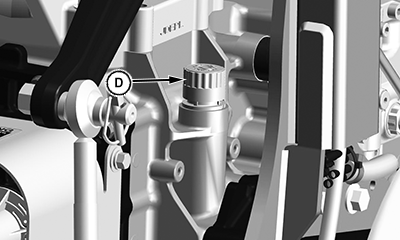

   D - Oil Fill Cap

   Remove oil fill cap (D).

---




9. Add recommended oil into filler opening.

10. Start engine. Check for oil leaks around filter bases and drain plugs.

11. Stop engine.

12. Check transmission oil level. Add oil if necessary.
