Changing Front Axle Oil

1. Warm the front axle oil by operating the machine.

2. Park the machine safely.

3.

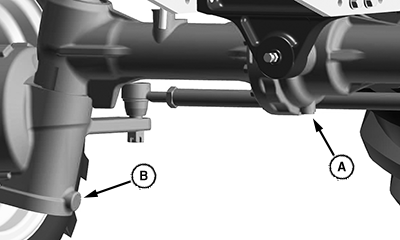

   LV25625-UN-13JUN16

   Right Front Axle Drain Plug Shown, Left is Similar

   A - Differential Drain Plug

   B - Axle Drain Plug (right side shown, left side is similar)

   Position a drain pan under the differential drain plug (A) and both the axle drain plugs (B).

---




4. Remove the drain plugs and allow the oil to drain.

5. Install and tighten drain plugs after all the oil has drained.

6.

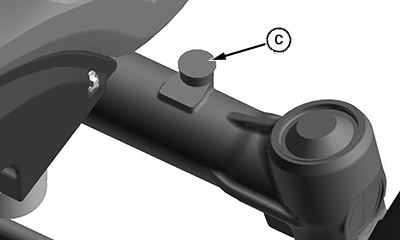

   LV25627-UN-13JUN16

   C - Dipstick

   Remove the dipstick (C) on the right side of the front axle.

---




7. Add the recommended oil through the dipstick fill opening until the oil level is correct.

8. Install and tighten the dipstick.

9. IMPORTANT: Avoid damage! Drive the tractor 1 minute at low speed, in both forward and reverse to help fill the wheel ends.

   Allow the oil 1 hour to settle before checking the level to ensure accurate dipstick reading. Repeat the oil level check after several hours of operation.

   Check the front axle oil level.
