Adjusting Front Axle Thrust Bolt Torque

NOTE: Prevent excessive forward or rearward movement of front axle by adjusting the bolt torque at the required service intervals.

1. Park the machine safely.

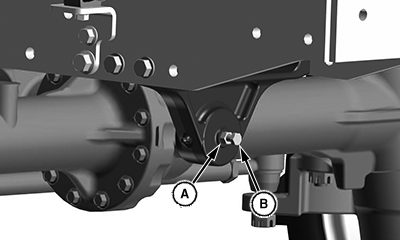

   LV25628-UN-13JUN16

   A - Locknut

   B - Thrust Bolt

---




2. CAUTION: Avoid injury! The machine can fall or slip from an unsafe lifting device or supports.

   • Use a safe lifting device rated for the load to be lifted.
   • Lower the machine onto jack stands or other stable supports and block the wheels before servicing.



   Raise the front axle off the ground to take the machine weight off the front axle.

3. Loosen the locknut (A).

4. Tighten the thrust bolt (B).

   Item	Measurement	Specification
   Thrust Bolt	Torque	14 N·m (10 lb·ft)

   Do not overtighten.

5. Oscillate the axle from stop to stop. Check the torque.

6. Tighten the locknut.

7. Lower the front axle to the ground.
