Lubricating Axle Trunnion

LV25629-UN-13JUN16

LV25630-UN-13JUN16

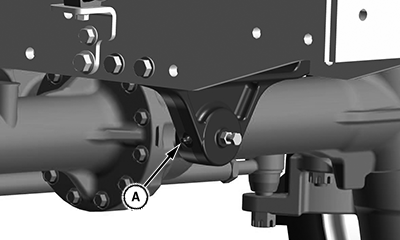

A - Front Trunnion Grease Fitting

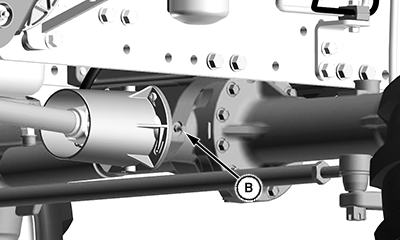

B - Rear Trunnion Grease Fitting

Lubricate the front trunnion grease fitting (A) and the rear trunnion grease fitting (B) with the recommended grease or equivalent.
