Removing and Installing Front Cowl

1. Park the machine safely.

2. Close the hood.

3.

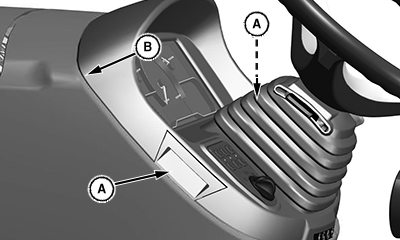

   LV25563-UN-13JUN16

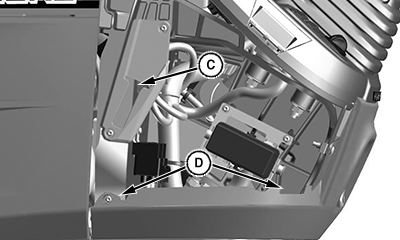

   LV25638-UN-15JUN16

   A - Hood Cowl Latch

   B - Hood Cowl

   C - Alignment Slot

   D - Alignment Slot

   Pull the hood cowl latch (A) out on both sides.

---




4. To remove, slide the hood cowl (B) up.

5. Align the hood cowl tabs with the alignment slots (C and D).

6. Slide the cowl into position.

7. Pull out the hood cowl latch on both sides and release.
