Filling Fuel Tank

CAUTION: Avoid injury! Fuel vapors are explosive and flammable:

• Shut engine off before filling fuel tank.
• Allow engine to cool before refueling.
• Do not smoke while handling fuel.
• Keep fuel away from flames or sparks.
• Fill fuel tank outdoors or in well ventilated area.
• Clean up spilled fuel immediately.
• Use clean approved non-metal container to prevent static electric discharge.

IMPORTANT: Avoid damage! Dirt and water in fuel can cause engine damage:

• Clean dirt and debris from the fuel tank opening.
• Use clean, fresh, stabilized fuel.
• Fill the fuel tank at the end of each day’s operation to keep condensation out of the fuel tank.
• Use a non-metallic funnel with a plastic mesh strainer when filling the fuel tank or container.

Fill fuel tank at the end of each day’s operation to prevent condensation and freezing during cold weather.

1. Park machine safely.

2. Allow engine to cool.

3. Remove any trash from area around fuel tank cap.

4.

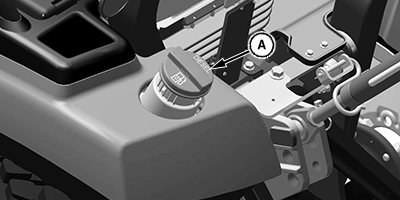

   LV25666-UN-29JUN16

   A - Fuel Tank Cap

   Remove fuel tank cap (A) slowly to allow any pressure built up in tank to escape.

---




5. Fill fuel tank only to bottom of filler neck. Do not overfill.

6. Install fuel tank cap.
