Road, Work, and Warning Lights

CAUTION: Avoid injury! Do not operate on roads with light switch in the field position. Front or Rear work lights may blind or confuse operators of oncoming or following vehicles.

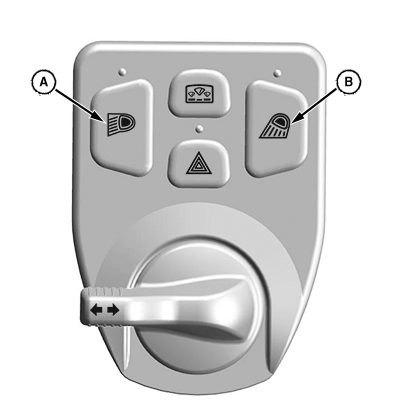

LV25663-UN-29JUN16

Tractor Lights
Activated Switch on Module	Use	Tail Lights Red	Work Lights	Head Lights
Off	Field, Day Time	Off	Off	Off
A - Road Lights	On Road, No Traffic, Night Time	On	Off	On
B - Work Lights	Off Road, Night Time	On	On	On

To activate or deactivate road lights, push the road light switch (A).

To activate or deactivate work lights, push the work light switch (B).

With the key switch in the off position, you can view the hour meter in the instrument panel by activating the road light (A) or work light (B) switch.
