Driving Machine

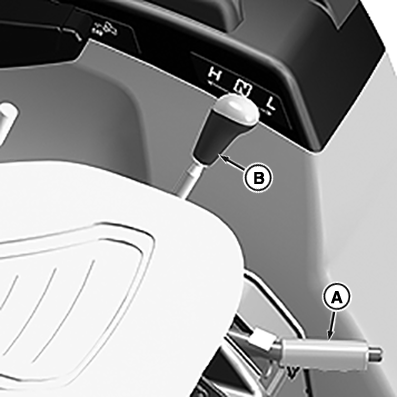

LV25078-UN-02MAY16

Park Brake, Range Lever

LV25668-UN-30JUN16

Throttle Lever, Forward, Reverse Pedals

A - Park Brake Lever

B - Transmission Range Shift Lever

C - Throttlel Lever

D - Forward Pedal

E - Reverse Pedal

CAUTION: Avoid injury! Always check area around machine for bystanders and obstacles before operating the machine.

IMPORTANT: Avoid damage! To prevent transmission damage, stop machine motion completely before shifting the transmission range shift lever.

1. Start machine engine.
2. Unlock park brake (A).
3. Choose L or H speed range on transmission range shift lever (B) to match work application.
4. Move throttle lever (C) to desired operating speed.
5. Slowly depress forward travel pedal (D) downward to move forward. Slowly depress reverse travel pedal (E) downward to move in reverse.
6. Release travel pedal to stop machine and change speed range.
7. Fully stop machine motion before turning ignition key switch to off position.
