Adjusting Seat

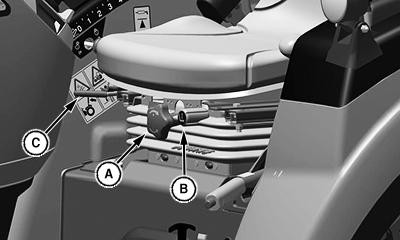

Seat Adjustment—Open Station

LV25677-UN-30JUN16

A - Weight Adjustment Knob

B - Height Adjustment Knob

C - Forward / Backward Adjustment Lever

Adjust to each operator's personal preference; there are three available seat adjustments:

Height: While seated, pull height adjustment knob (A) out to raise seat. Push adjustment knob to lower seat. Release knob to lock in position.

Level: While seated, turn seat level adjustment knob (B) to adjust to preferred level.

Forward or Backward: Rotate forward/backward adjustment Lever (C) counterclockwise to move seat to desired position. Release lever to lock seat in position.

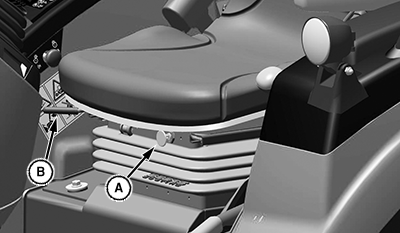

Seat Adjustment—Cab

LV26039-UN-07SEP16

A - Weight Adjustment Knob

B - Forward / Backward Adjustment Lever

Adjust to each operator's personal preference; there are two available seat adjustments:

Weight: While seated with the engine running, pull weight adjustment knob (A) out to increase air pressure. Push adjustment knob in to lower seat pressure. Release knob to lock in position.

Forward or Backward: Rotate forward/backward Adjustment Lever (B) counterclockwise to move seat to desired position.
