Cleaning Water Separator and Filter Screen

  1. Move the fuel shutoff valve to closed position.

  2. Place drain pan under sediment bowl.

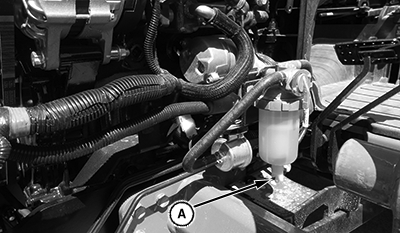

  3. LV25682
    LV25682-UN-30JUN16

    A - Drain Cock

    Turn drain cock (A) to open position.


  4. Wipe dirt from around sediment bowl.

  5. Turn sediment bowl counterclockwise to remove.

  6. Clean the filter screen and bowl.

  7. Install sediment bowl.

  8. Open fuel shutoff valve.

  9. NOTE: Fuel system is self bleeding.

    Turn key to the ON position for 10—15 seconds before attempting to start, electric pump purges air from water separator.
