Replacing Fuel Filter

  1. Park machine safely. Allow engine to cool.

  2. Close fuel shutoff valve.

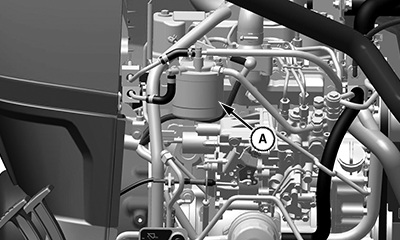

  3. LV25683
    LV25683-UN-30JUN16

    A - Fuel Filter

    Position drain pan under fuel filter (A) to catch fuel spillage.



  4. Wipe dirt from around filter.

  5. Turn filter counterclockwise to remove and discard.

  6. Apply fuel to surface of new filter gasket.

  7. Install new filter to filter head. Tighten to one complete turn after filter contacts head.

  8. Open fuel shutoff valve.

UP00731,0000261-19-20160818
