Checking Air Filter Hose

NOTE: Inspect air intake system hoses and connections each time the air filter is changed, or at a minimum yearly.

1. Park machine safely.

2. Raise hood.

3. NOTE: Visually inspect hose for cracks and wear. Squeeze hose to check for deterioration. Hose should not be hard and brittle, nor soft or swollen.

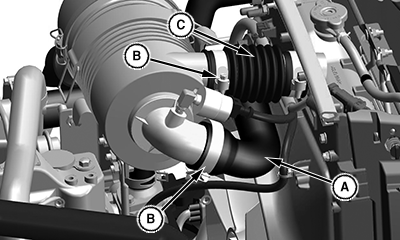

   LV25744-UN-05JUL16

   A - Hose

   B - Hose clamps

   C - Air Intake Duct

   Check air intake hose (A).

---




4. Tighten hose clamps (B) on air intake hose (A) and air intake duct (C) if necessary.

5. Check for wear on air intake duct (C).

6. Lower hood.
